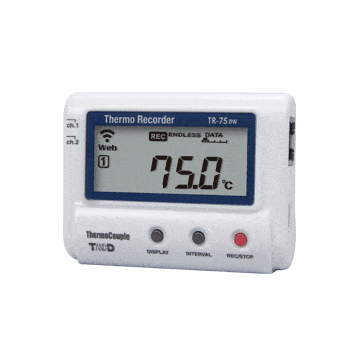

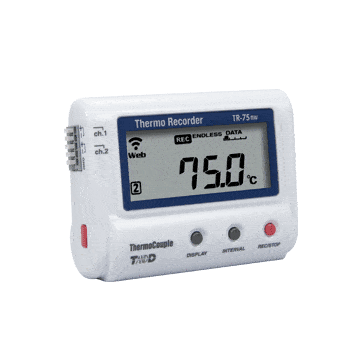

TR-75nw Thermocouple Temperature Data Logger

TR-75NW

Thermocouple Temperature Data Logger made for the Cloud. Recorded data can automatically be uploaded via wired LAN to the free cloud service "T&D WebStorage Service" where it can be accessed from anywhere you have a connection. It is also possible to connect directly to a PC via USB as well.

Meets or exceeds CDC requirements for VFC plus automated record keeping and real time monitoring.

Specifications

General Specifications

• Measurement Channels:    Temperature 2ch
• Thermocouple Sensors: (K,J,T,S)
• Measurement Range:    -199~1760°C
• Accuracy:    Type K, J, T, E: ±(0.5 °C + 0.3 % of reading)  Type S, R : ±(1.5 °C + 0.3 % of reading)
• LCD Display:    Measurements, Battery Level, etc.
• Logging Capacity:    8,000 data sets
• Recording Intervals:    15 choices from 1 sec. to 60 min.
• Recording Mode:    Endless/Onetime
• Comm Interfaces:    Wired LAN, USB
• Warning Notifications:    E-mail, Software/Browser
• Power:    AA Alkaline Battery x 2, AC Adaptor, PoE
• Operating Environment:   Temperature: -10 to 60°C, Humidity: 90%RH or less (no condensation)
• Dimensions:    H:58mm × W:78mm × D:26mm
• Battery Life:    Approx. 10 days to 1 year
• Accessories:    Temperature Sensor x2, AA Alkaline Battery (LR6), etc.

Full Specifications

See Full Specifications Here

Accessories

Order Probes Here (Note that the connector should be removed for probes with plugs - or we can build an adaptor for you)

Power Adaptor model AD-05A2

Wall Mount Plate TR-07K2
