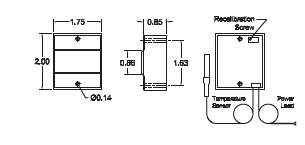

The Miljoco Series ED175 features an extra large, brightly lit display that is easily readable from long distances. The case is compact and attractive, and can be surface or flush mounted. This thermometer is ideal for multiple module installations in control packages or special engineering projects, and is the most popular style used in the food service equipment industry. This thermometer works well in both hot food and refrigeration applications and will operate on 12 VAC or 12 VDC. Other voltages are available
- DISPLAY: High intensity red LED, 0.56" high.
- UPDATE TIME: 4 seconds.
- RESOLUTION: 1 °F.
- ACCURACY: ± 2 °F.
- RECALIBRATION: Adjustment screw accessed from rear of case.
- CONNECTION: Plain sensor standard, consult table for other choices.
- SENSOR LEAD: PVC coated wire soldered directly to the instrument at the rear of the case. 96" lead length standard. Other lengths available up to 1000 feet.
- SENSOR: Thermistor type (02 Standard Ni-Plated Cu, 03 PVC, 13 Brass, 15 Stainless Steel)
- POWER: 12 VAC or 12 VDC. Optional transformer (110 VAC to 12 VAC) sold separately.
- Call with questions, 800-390-0004
