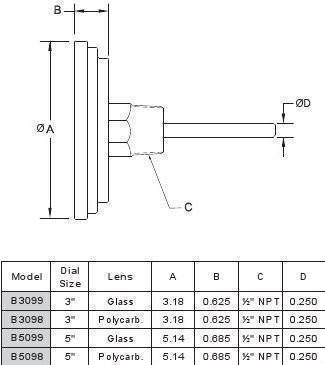

MJB3099-39 Series of 3" Dial Stem Thermometers. -40-160F and -40-70C

These rear connected bimetal thermometers are economic and ideal for applications that can accept a fixed back connection. These instruments are provided with an external recalibrator on the rear of the case, for easy temperature adjustment. The hermetically-sealed, stainless steel case prevents moisture from entering into the instrument and fogging the lens, thus allowing the operator to obtain clear, accurate readings.

• Range:  -40-160F (-40 to 70C)
• CASE & RING: Hermetically sealed 300 series stainless steel.
• LENS: Double strength glass standard, with polycarbonate (250 °F maximum range) optional.
• DIAL: Aluminum with white finish and black markings.
• POINTER: Black.
• RECALIBRATOR: Furnished standard with external recalibrator on rear of case.
• CONNECTION: 300 series stainless steel, 1/2" NPT.
• STEM: 300 series stainless steel, Ø 0.250".
• ACCURACY: ±1% full range (ASME B40.3 Grade A).
• AMBIENT TEMPERATURE: -40 to 250 °F (-40 to 120 °C)
