Miljoco B3098 Series 3" Dial Bi-Metal Stem Thermometer with 1/2" NPT Connection

Our Miljoco rear connected bi-metal thermometers are economic and ideal for applications that can accept a fixed back connection. These instruments are provided with an  external re-calibration nut on the rear of the case, for easy temperature adjustment. The hermetically-sealed, stainless steel case prevents moisture from entering into the instrument and fogging the lens, thus allowing the operator to obtain clear, accurate readings.

• CASE & RING:  Hermetically sealed 300 series stainless steel.
• LENS:  Polycarbonate.
• DIAL:  Aluminum with white finish and black markings.
• RANGES:  All dials are F and C

• POINTER:  Black.
• RECALIBRATOR:  Furnished standard with external calibraton nut on rear of case.

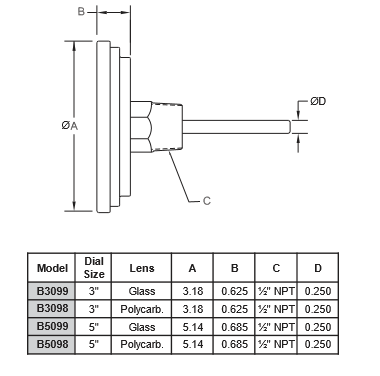

• CONNECTION:  300 series stainless steel, 1/2” NPT. STEM:  300 series stainless steel, Ø 0.250”.
• ACCURACY:  ±1% full range (ASME B40.3 Grade A).
• AMBIENT TEMPERATURE:  -40 to 250°F (-40 to 120°C).
