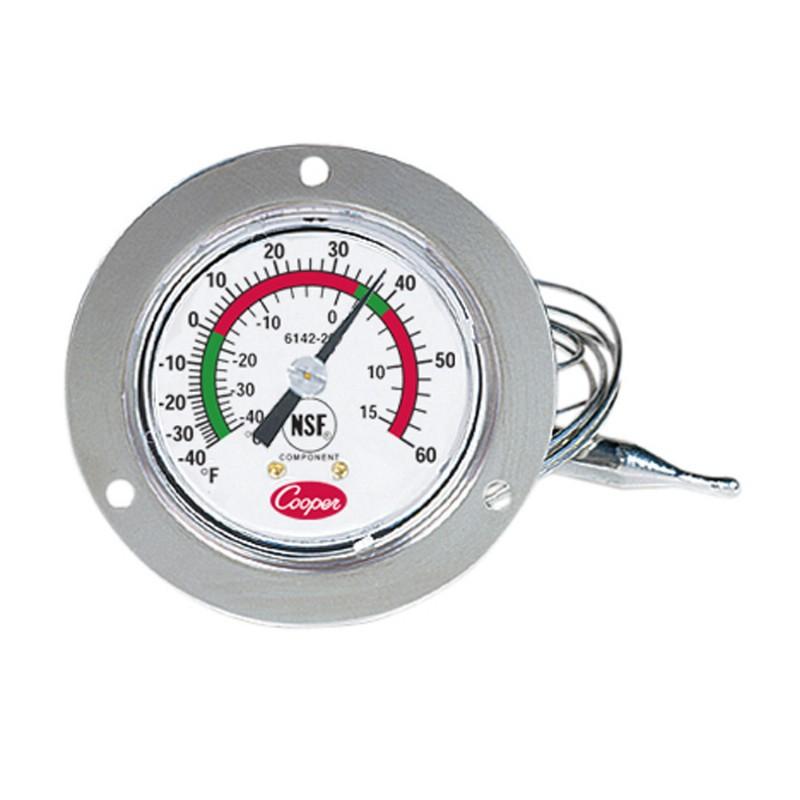

2" Dial Front Flange Back Connect Panel Thermometer
Cooper-Atkins Model 614220

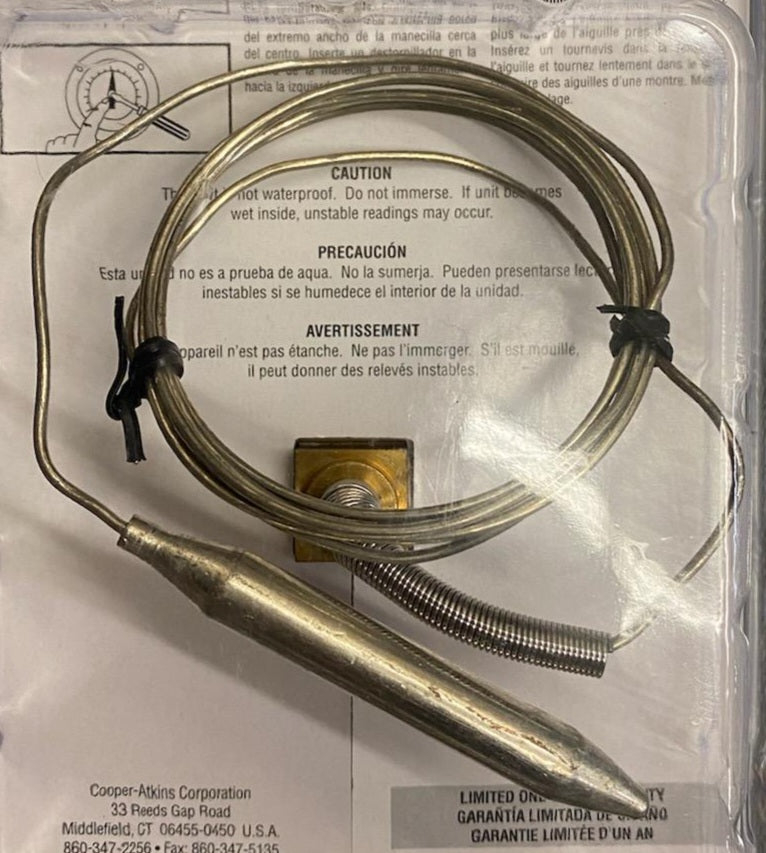

The 6142-20 panel thermometer features a temperature range of -40 ° to 60 °F / -40 to 15 °C, front flange, back connect, flush mount. It has a 2" dial diameter and 48" capillary. It features three (3) .156" diameter mounting holes equally spaced on 2.625" diameter bolt circle. This Cooper-Atkins thermometer is NSF certified. Very popular for monitoring of commercial and retail refrigeration.
| .314"/8mm (bulb) |
| 1 Year |
| Back |
| Polycarbonate lens/bezel |
| Front |
| NSF |
| 3"/76.2mm |
| -40 ° to 60 °F / -40 to 15 °C Dual Scale Dial |
| 48"/121.9cm |
| Flush |
| 2"/63.5mm (bulb) |
