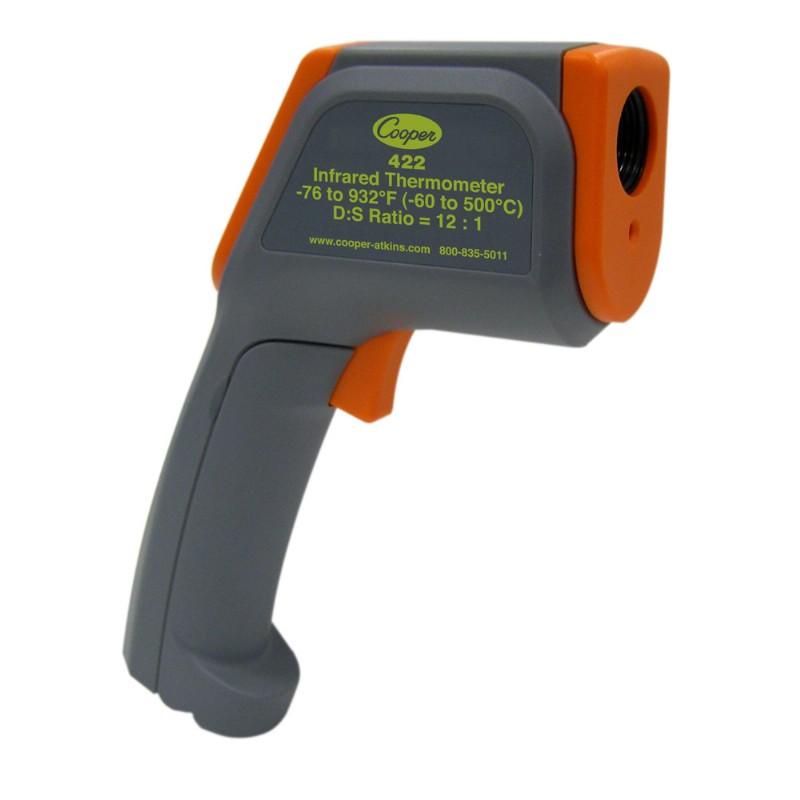

Cooper-Atkins model 422
PLEASE NOTE: THIS IS AN INDUSTRIAL THERMOMETER AND IS NOT INTENDED FOR HUMAN TEMPERATURE USE.
Industrial Gun Style Infrared Thermometer.
Using the model 422 Cooper-Atkins infrared thermometer is a safe way to measure surface temperatures of hot, hard to reach, electrically energized or moving objects. Verify HVAC distribution, check for overheated wires, radiant heat in floors, motors, insulation, pipes, breakers, and corroded connections. Excellent for reading ceiling duct temperatures from the floor without a ladder!
Specifications
| Certifications |
CE, WEEE |
| Laser Sighting |
8-Point Classll Laser - always enabled while measuring |
| Auto Shut-off |
Yes after 15 seconds of non-use |
| Temperature Range |
-76° to 932°F ( -60° to 500°C) |
| Temperature Accuracy |
±2% or ±4F° (±2C°) whichever is greater |
| LCD Height |
LCD with Backlight (always on while measuring) |
| Resolution |
0.1° |
| D:S Ratio |
12:1 |
| Emissivity |
Default 0.95 fixed |
| Housing Material |
ABS plastic |
| Response Time |
1 second (90%) |
| Battery Type |
Battery (2AAA alkaline batteries - included) |
| Battery Life |
18 hrs typ / 14 hrs min continuous use with laser/backlight on - low battery indicator |
| Weight |
8.5 oz (240 g) (including batteries) |
| Dimensions |
1.8" x 5.6" x 7.3" (46 mm x 143 mm x 184.8 mm) |
aka lazer thermometer
